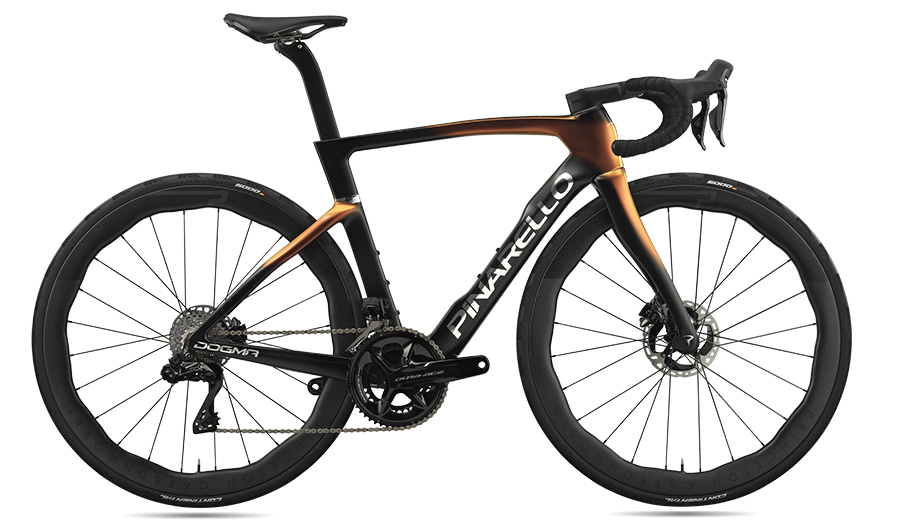

Pinarello New Dogma F

Pinarello New Dogma F

Dura Ace Di2

*groupset on the picture might differ from bike specification

Sizes available:

46,5 51,5 53

Main Features:

FRAME TorayCa M40X, TiCR™ Cable Routing, Italian BB

FORK NEW eTICR Onda Fork with ForkFlap

COLOR Luxter Red Gold

WEIGHT 6.77 Kg

REAR DERAILLEUR Shimano Dura Ace Di2 12S

FRONT DERAILLEUR Shimano Dura Ace Di2 12S

CHAIN Shimano Dura Ace 12s

CRANKSET Shimano Dura Ace 50-34

SHIFT LEVER Shimano Dura Ace

CRANK ARM Depending on sizes

Tg.46,5/51,5 Pedivella 170 50/34
Tg.53 Pedivelle 172.5 50/34

CASSETTE 11/34

SADDLE Most Lynx Ultrafast Superflow Carbon

SEATPOST Pinarello Aero

HANDLEBAR Most Talon Ultra Fast

STEM Most Talon

FRONT BRAKE Shimano Dura Ace a 2 pistoncini, rotore da 160mm

REAR BRAKE Shimano Dura Ace a 2 pistoncini, rotore da 140mm

BRAKE ROTOR Shimano Dura Ace

WHEELSET DTSWISS ARC 1400

FRONT HUB DT Swiss

REAR HUB DT Swiss

TYRES Continental

FIND YOUR SIZE

Sizes Available

Show: cm | in

Geometry

CC (mm)	CE (mm)	L (mm)	A[°]	B[°]	P (mm)	T (mm)	D (mm)	R (mm)	G (mm)	REACH (mm)	STACK (mm)
46,5	450	515	74.4	70.5	406	104	72	43	373	364.8	517.6
51,5	485	535	73.7	72	406	114	72	43	373	378	532.3
53	500	545	73.7	72.5	406	123	72	43	373	383.3	542.6
54	510	550	73.4	72.8	408	131	72	43	373	385	551.2
56	525	565	73	73.2	408	149.5	72	43	373	390.7	570.2
57.5	540	575	73	73.7	408	163	72	43	373	396.7	584.8
59.5	560	587	72.4	73.4	408	199	67	43	373	393.3	613.3

CE: SEAT TUBE CENTER - END
CC: SEAT TUBE CENTER - CENTER
L: TOP TUBE CENTER - CENTER
A[°]: SEAT TUBE ANGLE
B[°]: HEADTUBE ANGLE
P: CHAINSTAY
T: HEADTUBE
D: BB DROP
R: FORK RAKE
G: FORK HEIGHT
REACH
STACK
