Pinarello Dogma F

Pinarello Dogma F

Red ETAP AXS

*groupset on the picture might differ from bike specification

Sizes available:

46,5 51,5 53 54

56 57,5 59,5

Main Features:

FRAME TorayCa T1100 1K Dream Carbon

FORK Fork Onda F

COLOR Summit White

WEIGHT 6.9 Kg

REAR DERAILLEUR SRAM Red ETAP AXS 12S

FRONT DERAILLEUR SRAM Red ETAP AXS 12S

CHAIN Sram red 12s

CRANKSET Sram Red 46-33

SHIFT LEVER Sram Red

CRANK ARM Depending on sizes

Tg.46/51,5 Crank Arm 170 46/33
Tg.53/54/56 Crank Arm 172.5 46/33
Tg.57,5/59,5 Crank Arm 175 46/33

CASSETTE 10/33

SADDLE Most Lynx Ultrafast Superflow

SEATPOST Pinarello Aero

HANDLEBAR Most Talon Ultra Fast

STEM Most Talon

Tg.46 Stem 100 / Curve 42
Tg.51,5 Stem 110 / Curve 42
Tg.53 Stem 110 / Curve 44
Tg.53 Stem 110 / Curve 44
Tg.54 Stem 120 / Curve 46
Tg.57,5 Stem 120 / Curve 46
Tg.59,5 Stem 130 / Curve 46

HEADSET Pinarello 1" 1/4 Up e 1" 1/2 Down

FRONT BRAKE Caliper Sram Red a 2 pistons, rotor 160mm

REAR BRAKE Caliper Sram Red a 2 pistons, rotor 160mm

BRAKE ROTOR Sram

WHEELSET VISION METRON 45 SL DB XDR

FRONT HUB VISION

REAR HUB VISION

TYRES PIRELLI P0 RACE 26

FIND YOUR SIZE

Sizes Available

Show: cm | in

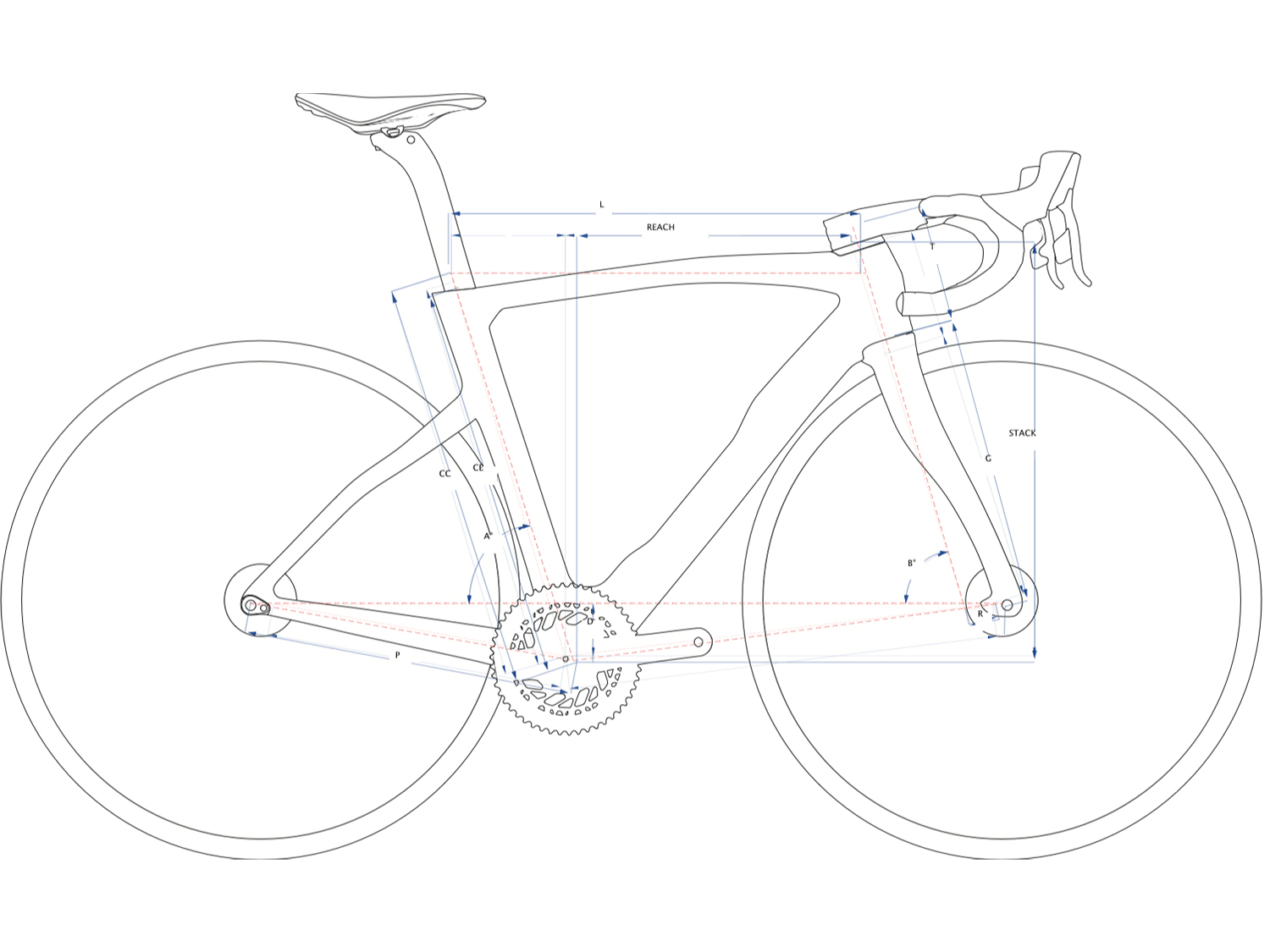

Geometry

CC (mm)	CE (mm)	L (mm)	A[°]	B[°]	P (mm)	T (mm)	D (mm)	R (mm)	G (mm)	REACH (mm)	STACK (mm)
46,5	450	515	74.4	70.5	406	104	72	43	373	364.8	517.6
51,5	485	535	73.7	72	406	114	72	43	373	378	532.3
53	500	545	73.7	72.5	406	123	72	43	373	383.3	542.6
54	510	550	73.4	72.8	408	131	72	43	373	385	551.2
56	525	565	73	73.2	408	149.5	72	43	373	390.7	570.2
57.5	540	575	73	73.7	408	163	72	43	373	396.7	584.8
59.5	560	587	72.4	73.4	408	199	67	43	373	393.3	613.3

CE: SEAT TUBE CENTER - END
CC: SEAT TUBE CENTER - CENTER
L: TOP TUBE CENTER - CENTER
A[°]: SEAT TUBE ANGLE
B[°]: HEADTUBE ANGLE
P: CHAINSTAY
T: HEADTUBE
D: BB DROP
R: FORK RAKE
G: FORK HEIGHT
REACH
STACK
