THE MOUNTAIN BIKE, DISTILLED

Santacruz Hightower 3

M L

FRAME Carbon C

SHOCK RockShox Super Deluxe Select+, 210x55

FORK FOX 36 Float Performance, 150mm

BRAKES SRAM Code R

CRANKSET SRAM GX Eagle 148 DUB 32t

SHIFTERS SRAM GX Eagle, 12spd

REAR DERAILLEUR SRAM GX Eagle, 12spd

CASSETTE SRAM XG1275 Eagle, 12spd, 10-50t

SEAT POST OneUp V2 Dropper Post, 31.6 or RockShox Reverb, 31.6

TYRES Maxxis

Maxxis Minion DHR II 29"x2.4", 3C MaxxGrip, EXO
Maxxis Minion DHR II 29"x2.4", 3C MaxxTerra, EXO

WEIGHT TBD

Sizes Available

Show: cm | in

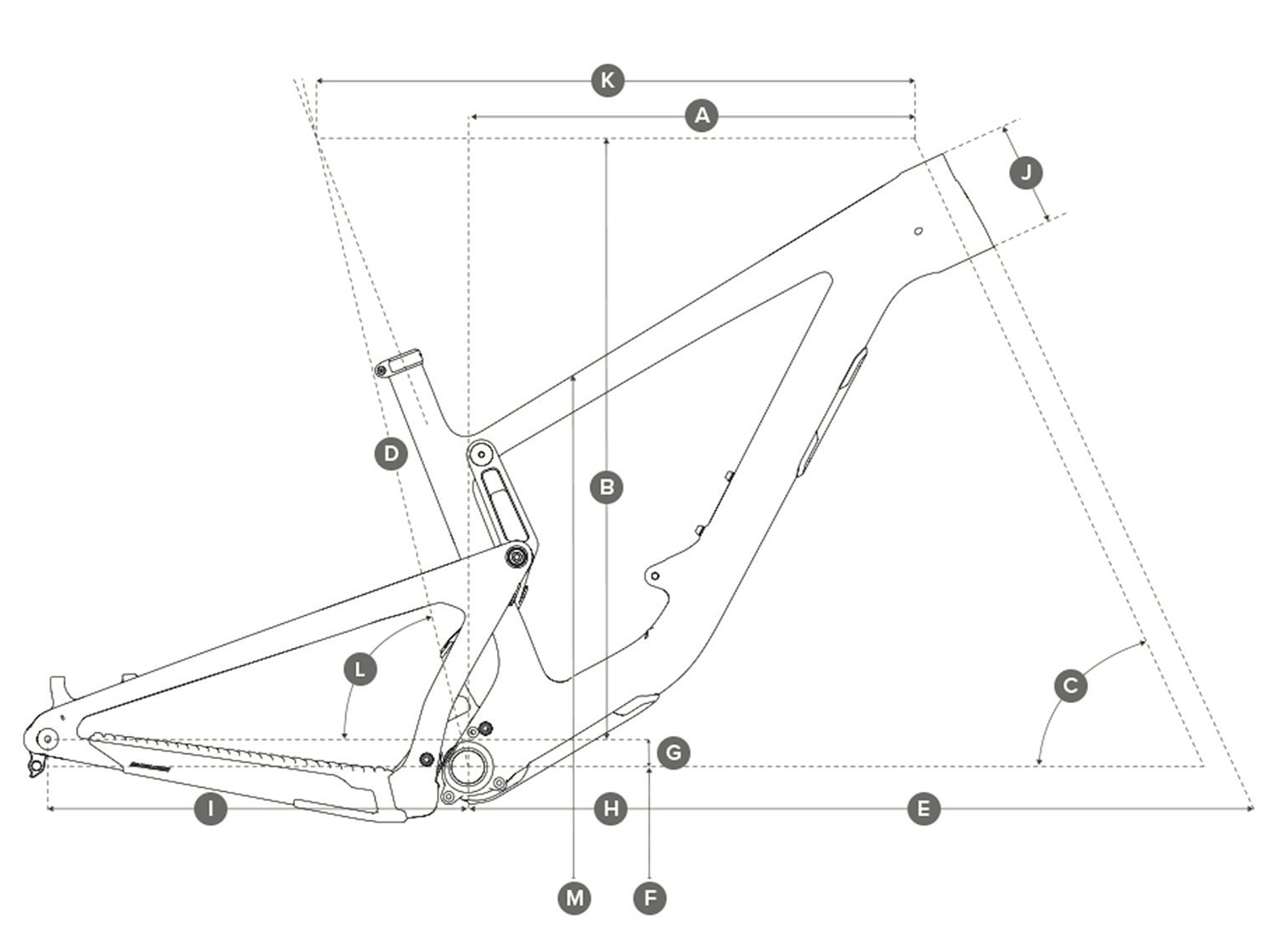

SIZES	S (Low/High)	M (Low/High)	L (Low/High)	XL (Low/High)	XXL (Low/High)
A-Reach	430/427mm	455/452mm	475/472mm	495/492mm	520/517mm
B-Stack	611/613mm	625/627mm	634/636mm	652/654mm	665/668mm
C-Head Tube Angle	64.8°/64.5°	64.8°/64.5°	64.8°/64.5°	64.8°/64.5°	64.8°/64.5°
D-Seat Tube Length	380mm	405mm	430mm	460mm	500mm
E-Front Center	752mm	783mm	807mm	836mm	867mm
F-BB Height	342/339mm	342/338mm	342/338mm	342/338mm	342/338mm
G-BB Drop	31/34mm	31/34mm	31/34mm	31/34mm	31/34mm
H-Wheelbase	1183mm	1218mm	1245mm	1276mm	1311mm
I-Chainstay Length	432mm	435mm	438mm	441mm	444mm
J-Head Tube Length	100mm	115mm	125mm	145mm	160mm
K-Top Tube Length	572mm	600mm	627mm	648mm	675mm
L-Seat Tube Angle	77°/76.7°	77°/76.7°	76.7°/76.4°	76.9°/76.6°	76.9°/76.7°
M-Standover	706/701mm	708/703mm	711/706mm	714/709mm	719/714mm
